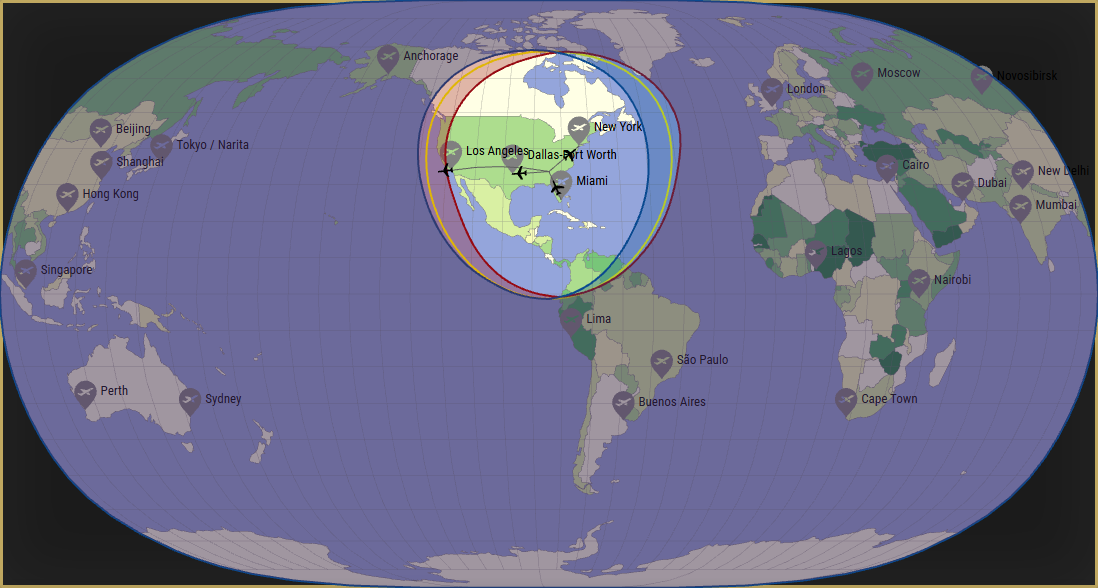

What is an Aircraft Range Map?

An aircraft range map is a visual representation of how far an aircraft can travel from a given location based on factors like fuel capacity, wind conditions, and aircraft performance. Pilots, airlines, and aviation enthusiasts use these maps to assess flight feasibility, plan routes, and compare aircraft capabilities.

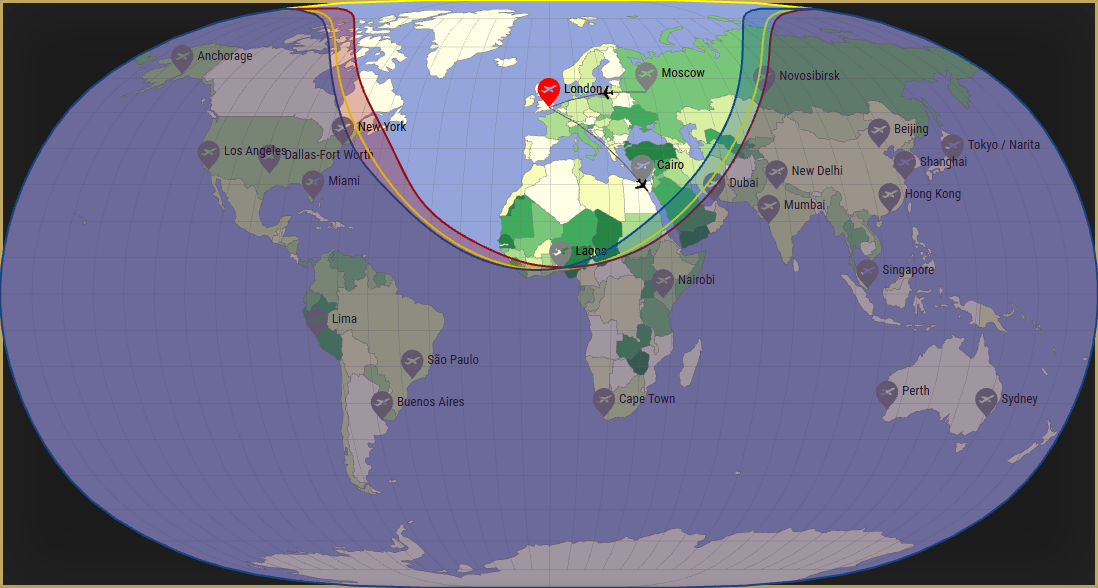

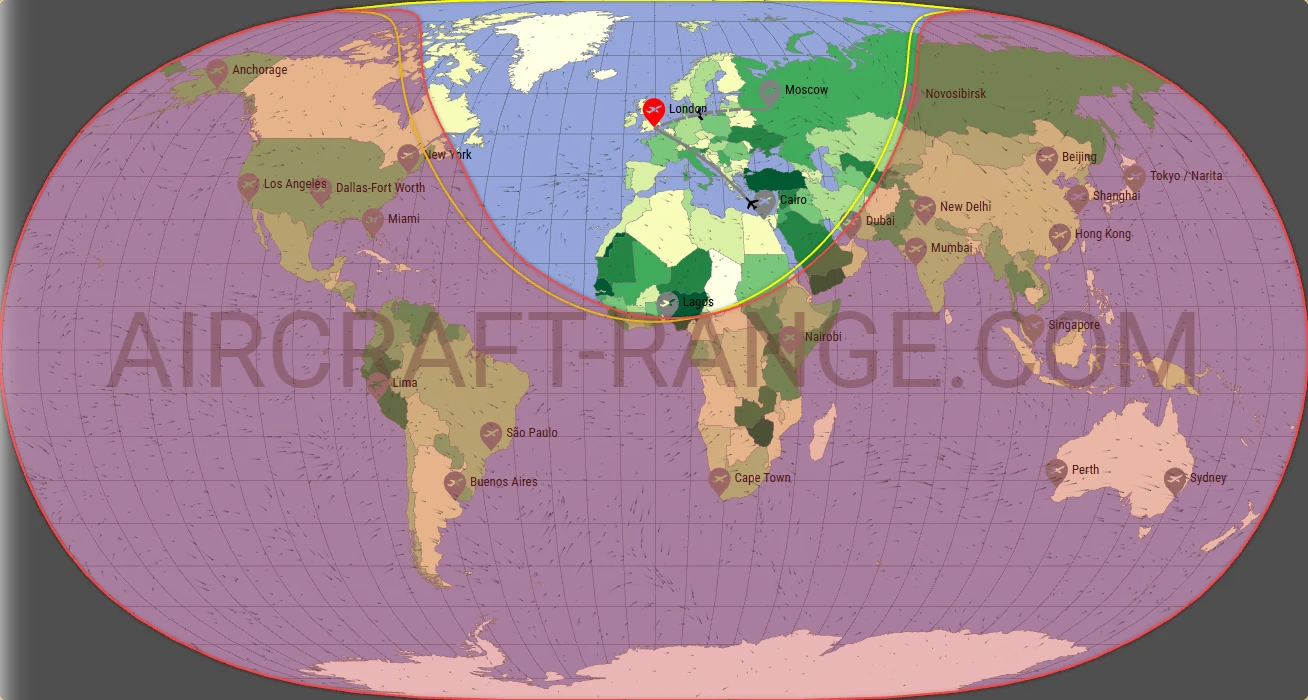

Aircraft Range Map
Map showing the Airbus A320 flight range from London with real wind statistical data.

Why is an Aircraft Range Map Important?

Aircraft range maps provide crucial insights for:

  • Flight Planning – Helps pilots and operators determine if a destination is within range, considering fuel consumption and reserve requirements.
  • Aircraft Comparison – Assists buyers in evaluating which aircraft best meets their operational needs.
  • Operational Efficiency – Enables airlines to optimize routes, reducing fuel costs and flight time.

Key Factors Influencing Aircraft Range

1. Fuel Capacity and Efficiency

Aircraft range is primarily determined by how much fuel it can carry and how efficiently it consumes fuel.

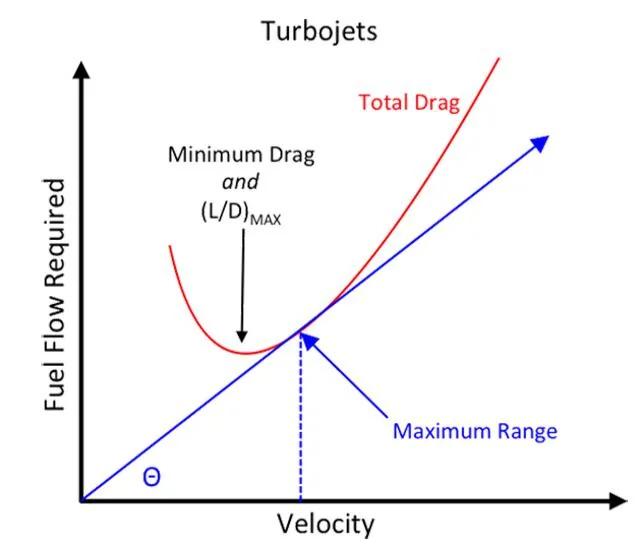

 fuel flow varies with aircraft velocity,
fuel flow varies with aircraft velocity, illustrating maximum range as influenced by aerodynamic drag

2. Wind and Weather Conditions

Winds at cruising altitudes significantly affect aircraft range. Tailwinds extend range by increasing ground speed, while headwinds reduce range by slowing the aircraft.

3. Altitude and Performance

Different aircraft perform optimally at different altitudes. Factors like air density and temperature influence fuel consumption and engine efficiency.

4. Weight and Payload

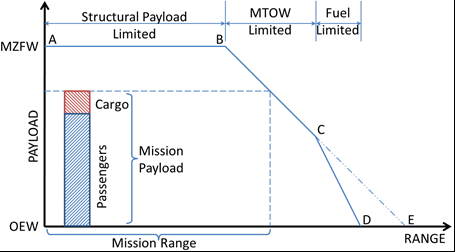

Aircraft payload-range chart
An aircraft payload-range chart shows how far a plane can fly based on varying passenger and cargo loads.

A heavier aircraft due to passengers, cargo, and additional fuel reduces range. Lighter loads improve efficiency and extend range.

5. ETOPS (Extended Twin-Engine Operations)

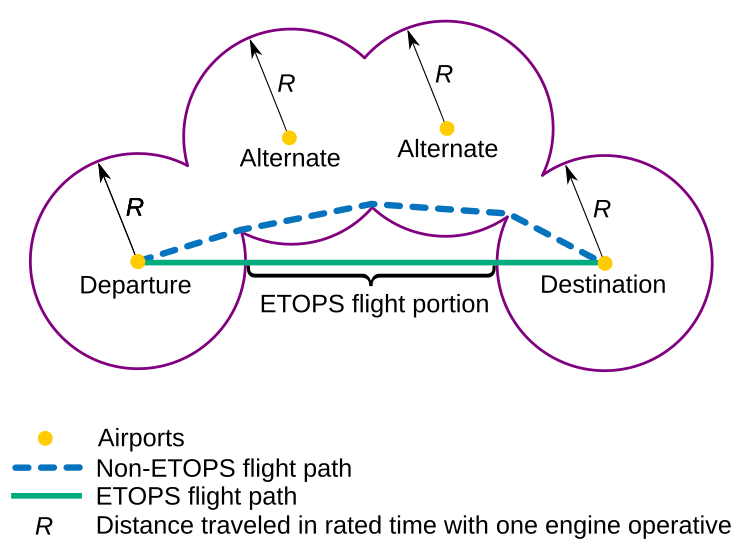

ETOPS (Extended-range Twin-engine Operational Performance Standards) Diagram
ETOPS (Extended-range Twin-engine Operational Performance Standards) refers to the set of rules that allow twin-engine aircraft to fly routes that, at some points, are farther than 60 minutes from a suitable diversion airport.

For twin-engine aircraft operating long-haul routes over oceans or remote areas, ETOPS regulations dictate how far the aircraft can be from the nearest airport in case of an emergency, affecting route planning.

How Aircraft Range Maps Are Calculated

Aircraft range maps are generated using complex models that consider:

  • Triangle of Velocities , which factors in wind speed and direction to adjust the aircraft’s actual range.
  • Statistical wind data, gathered from decades of meteorological records.
  • Flight performance simulations, which calculate fuel burn rates at different altitudes and weather conditions.
  • Operational constraints, such as reserve fuel requirements and alternate airport considerations.

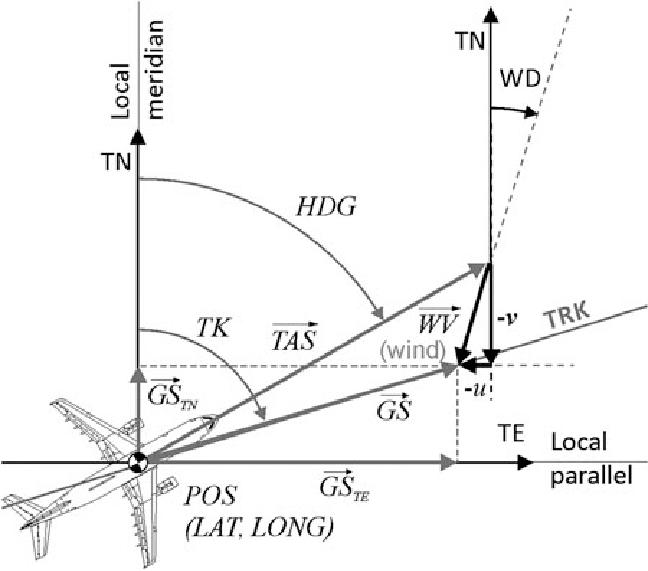

Triangle of Velocities Diagram
The Triangle of Velocities illustrates how true airspeed and wind vector combine to produce ground speed. Understanding this vector relationship is crucial for accurate range prediction.

Using an Interactive Aircraft Range Map

Online tools like aircraft-range.com provide interactive aircraft range maps that help users visualize:

  • Real-world range with statistical wind conditions
  • Differences between Outbound and Inbound flights
  • Customizable aircraft performance parameters
  • Compare up to three aircraft
  • More map projections for better visualization

Conclusion

An aircraft range map is an essential tool for flight planning, aircraft selection, and route optimization. By accounting for factors like wind, fuel efficiency, and aircraft performance, range maps provide a realistic view of how far an aircraft can travel under actual flying conditions. Whether you're a pilot, airline operator, or aviation enthusiast, leveraging an accurate aircraft range map can improve decision-making and operational planning.
